PRODUCT DISPLAY

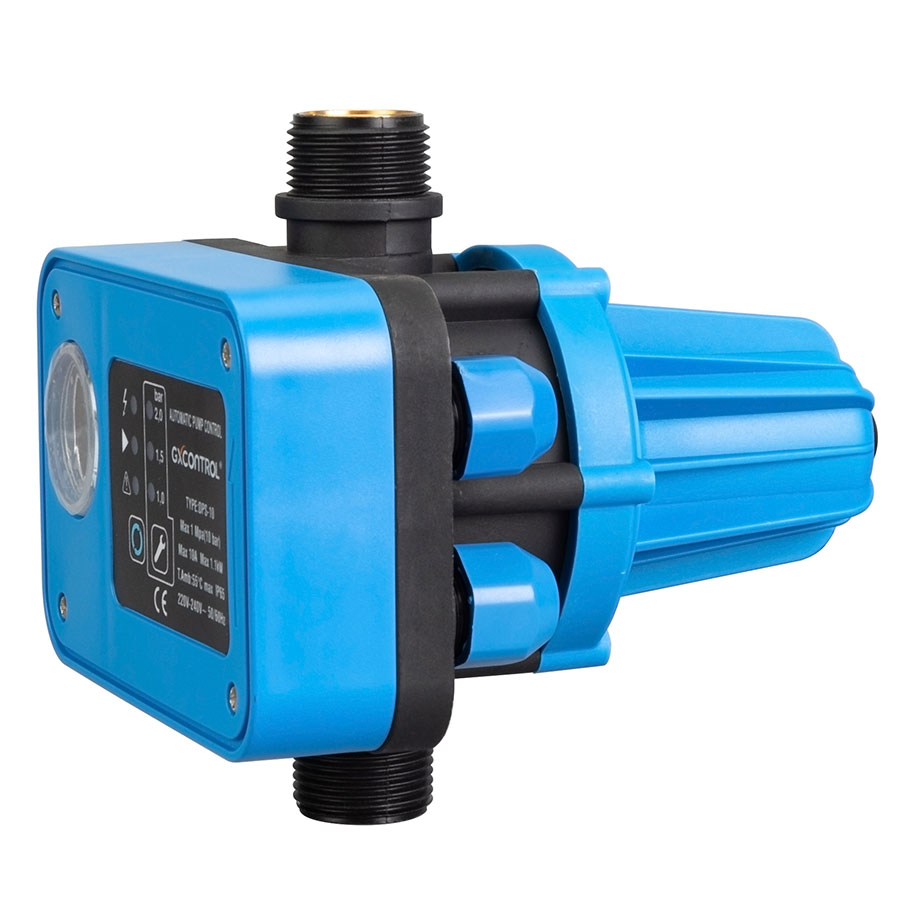

DPS-10
    Publish time 2019-06-10 16:46
Technical parameters:
1.Rated voltage:220V-240V/110V-120V
2.Frequency:50/60Hz
3.Max. current:10A
4.Max. power:1.1kW
5.Start pressure setting: 1.2bar,1.5bar,2.2bar
6.Max working pressure:10bar
7.Joint Screw:1"
8.Grade of protection:IP65
9.Max working temperature:60℃

Function:
1.Start and stop the pump automatically
2.Protect the pump from damage caused by dry-running
3.Protect the pump from damage caused by dry-overheat
4.Examine the water automatically
5.Forced start
6.The start pressure can setting by user

PACKAGE
PACKING SIZE(M3) PCS/CNT N.W(KGS) G.W(KGS) 20'GP
54×41×35(cm)
12 12
14
4380PCS/365CTNS
